Description

Eclipse 7-Segmented Pauldrons for Armored Combat

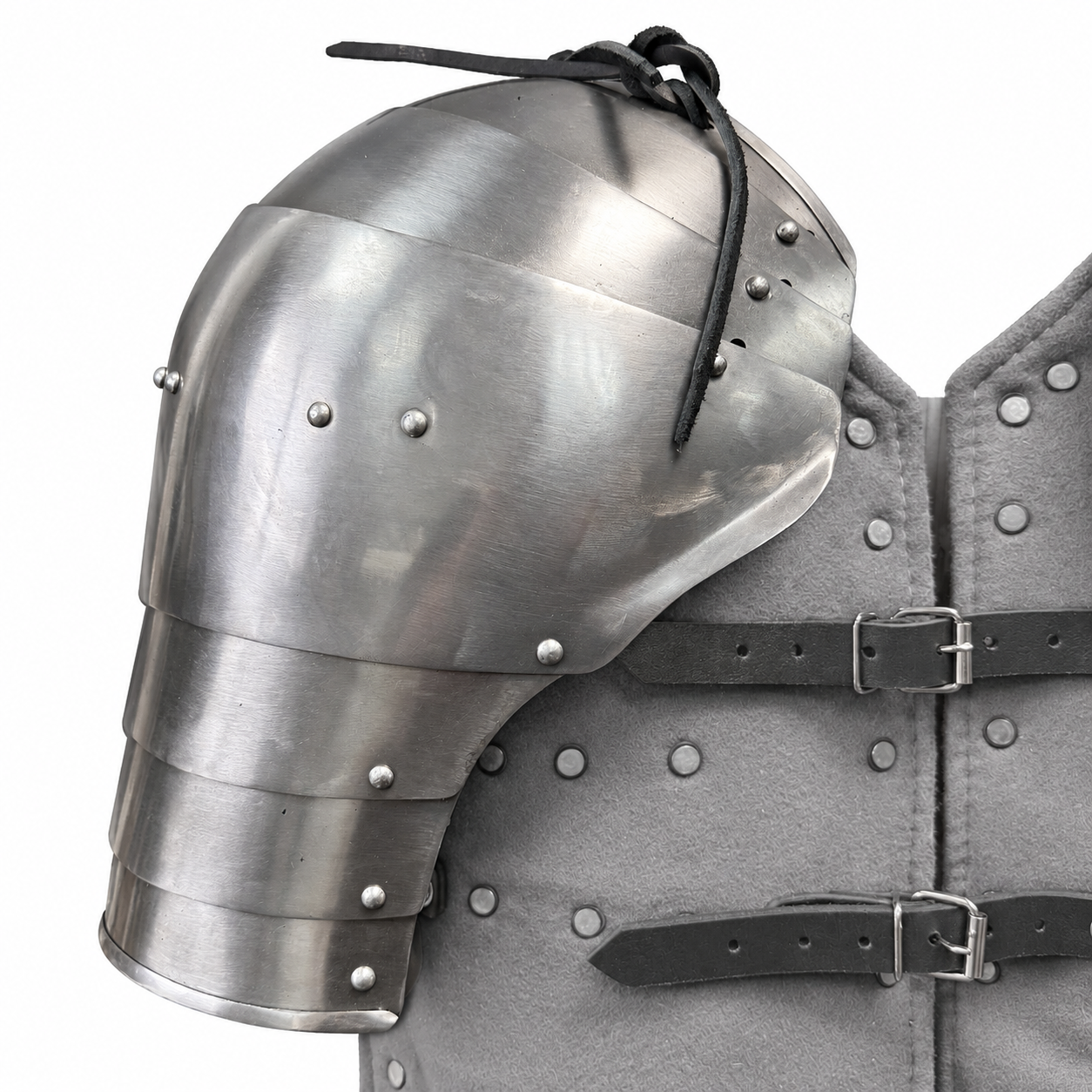

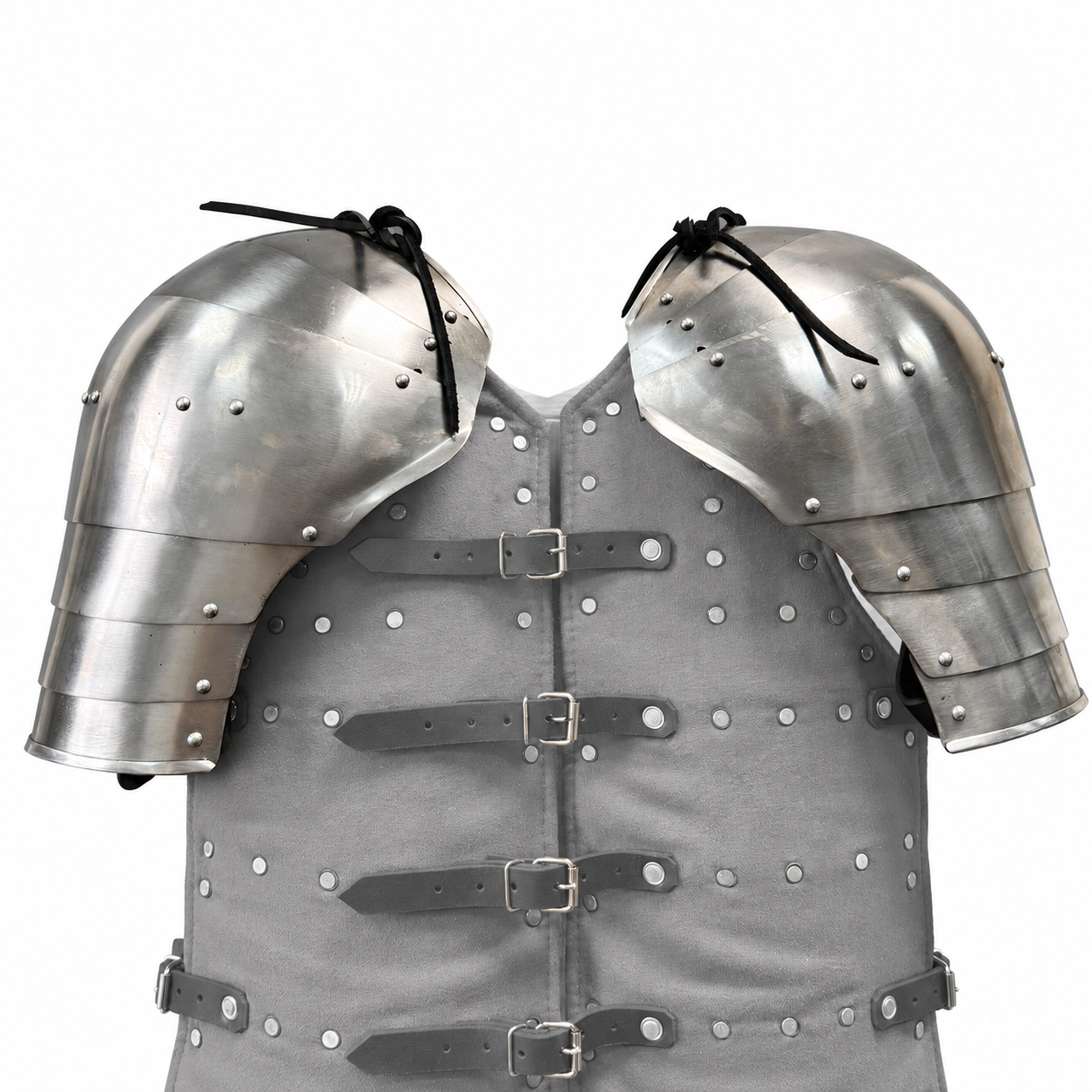

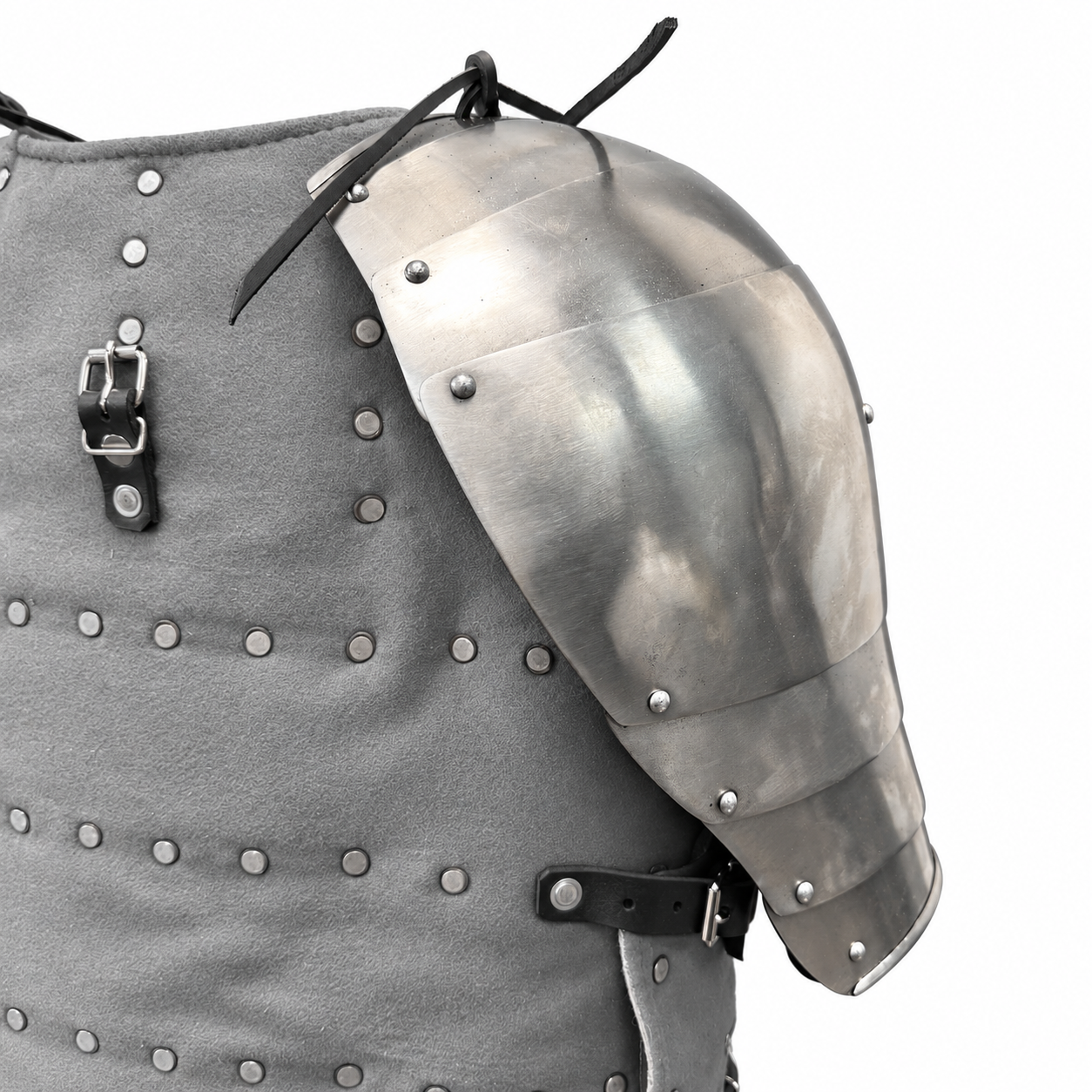

Eclipse 7-Segmented Pauldrons are large shoulder armor designed for fighters who prioritize maximum coverage without giving up the mobility needed for armored combat. Seven overlapping segments extend protection around the shoulder and upper arm, while the articulated construction lets the pauldrons move with you.

TL;DR

• Large 7-segment pauldrons for armored combat
• Material: hardened 65G spring steel
• Main segment: 1.5 mm (0.06 in)
• Other segments: 1 mm (0.04 in)
• Weight: 2.74 kg (6.04 lb) per pair
• Height: approximately 35–39 cm (13.8–15.4 in), depending on size
• Width across main segment: approximately 45 cm (17.7 in)
• 7 articulated segments for coverage and mobility
• Sliding rivets at the back and leather articulation at the front
• Rolled upper and lower edges for additional rigidity and durability

Eclipse is deliberately big. The approximately 45 cm (17.7 in) wide main segment provides substantial coverage around the shoulder, while seven overlapping plates continue that protection down the upper arm. As a result, you get more coverage from the front, side, and rear of the shoulder than with a smaller pauldron design.

However, large shoulder armor still needs to move. Therefore, Eclipse uses seven articulated segments rather than one rigid shell. Sliding rivets connect the plates at the back, while a leather strap connects them at the front. This construction allows the segments to shift and overlap as you raise, rotate, and extend your arms.

The front geometry also leaves room around the neck. Consequently, the upper section can provide broad coverage without constantly pressing or pinching against the neck when you move your head and shoulders.

We use hardened 65G spring steel throughout the pauldrons. The main shoulder segment is reinforced to 1.5 mm (0.06 in), while the remaining segments use 1 mm (0.04 in) steel. Therefore, the construction puts additional material in the central shoulder area while keeping the articulated sections lighter.

In addition, both the upper and lower edges are rolled. The rolled profile increases edge rigidity and makes these high-contact areas more resistant to deformation during regular combat use.

At 2.74 kg (6.04 lb) per pair, Eclipse is not designed to be our smallest shoulder option. Instead, it is built for fighters who accept some additional size and weight in exchange for large-area shoulder and upper-arm coverage.

Specifications

• Product: Eclipse 7-Segmented Pauldrons
• Material: hardened 65G spring steel
• Construction: 7 articulated segments
• Main segment thickness: 1.5 mm (0.06 in)
• Other segments: 1 mm (0.04 in)
• Weight: 2.74 kg (6.04 lb) per pair
• Height: approximately 35–39 cm (13.8–15.4 in), depending on size
• Main segment width: approximately 45 cm (17.7 in)
• Rear articulation: sliding rivets
• Front articulation: leather strap
• Edges: rolled at the top and bottom
• Attachment: designed for mounting to a brigandine or compatible armor setup

Choose Eclipse when coverage is the priority, but you still need articulated shoulders that can follow your movement during striking, grappling, and shield work.

Arms Protection FAQ

A

How should I take the measurements for my arms armor?

General Recommendations for Measurements for Arms Armor:

Clothing: Measurements should be taken wearing the gambeson you intend to wear with the armor. Sweaters or jackets will not accurately reflect the thickness of the gambeson and could lead to ill-fitting armor.

Bare Arms: If you are ordering both arms and padding together, measuring your bare arms is acceptable. However, please clearly indicate on the measurement sheet that the measurements are for bare arms.

Measurements: Take all measurements with a flexible measuring tape, snug but not tight.

Additional Notes:

• If your gambeson has any unusual features that might affect the fit of the armor, please describe them in the notes section.
• For best results, have someone else take your measurements.
• Feel free to include any other measurements you think might be helpful, such as elbow circumference.

Required measurements:

A. Weight: Measure your weight in kilograms or pounds.

B. Height: Measure your full height from head to toe.

M. Wrist Circumference: Measure above the gambeson, not on top of any leather straps.

N. Forearm Circumference: Measure the fullest part of the forearm.

V. Bicep Circumference: Measure the fullest part of the bicep, slightly flexed.

W. Forearm Length: Measure from the wrist joint to the tip of the elbow.

T. Shoulder Length: Measure from the point where the shoulder meets the neck to the tip of the elbow.
